Products Description
tone:
Configuration Advantages
SENDEMACH’s independently developed drive system is precisely matched with the engine performance curve, delivering strong traction and high transmission efficiency. Our self-engineered undercarriage components, including the wheels and tracks, are built for exceptional durability and long service life.
Easy Maintenance & Operator Comfort
The fully opening side panels provide generous maintenance space, and the well-organized layout of filters ensures quick and convenient servicing. The ergonomic cab features a spacious interior with excellent visibility, designed to maximize operator comfort during long working hours.
Adaptability to Various Working Conditions

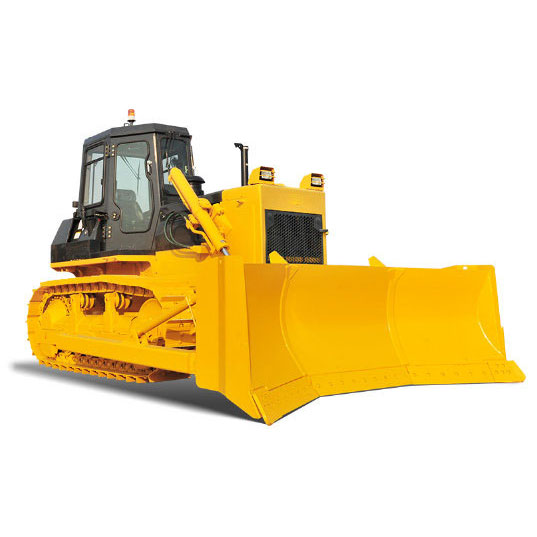

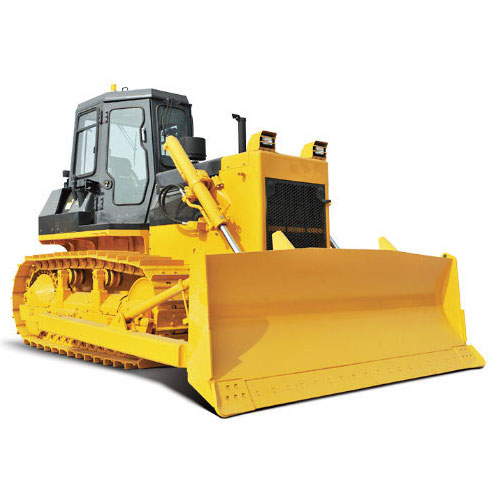

Equipped with a straight tilt blade that delivers powerful cutting performance, the machine is capable of handling multiple challenging environments, including clay, frozen ground, and sandy soil. The stable chassis with high ground clearance provides outstanding mobility and passability across complex terrains.
Tags:
Technical parameter
| Parameter | SD16 |
| Overall weight(kg) | 16400 |
| Engine brand | WEICHAI WD10G178E25 |
| Rated power/rated speed(kW/rpm) | 131/1850 |
| Machine external dimensions(mm) | 5140*3455*3032 |
| Track center distance(mm) | 1880 |
| Track shoe width(mm) | 510/560/610 |
| Ground contact length(mm) | 2430 |
| Fuel tank capacity(L) | 315 |
| Blade type | Straight tilting/U-shaped Blade |
| Blade capacity(m³) | 3.2/4.8 |
| Emissions (Indicated as per international standards) | Eu stageⅡ |
