Products Description

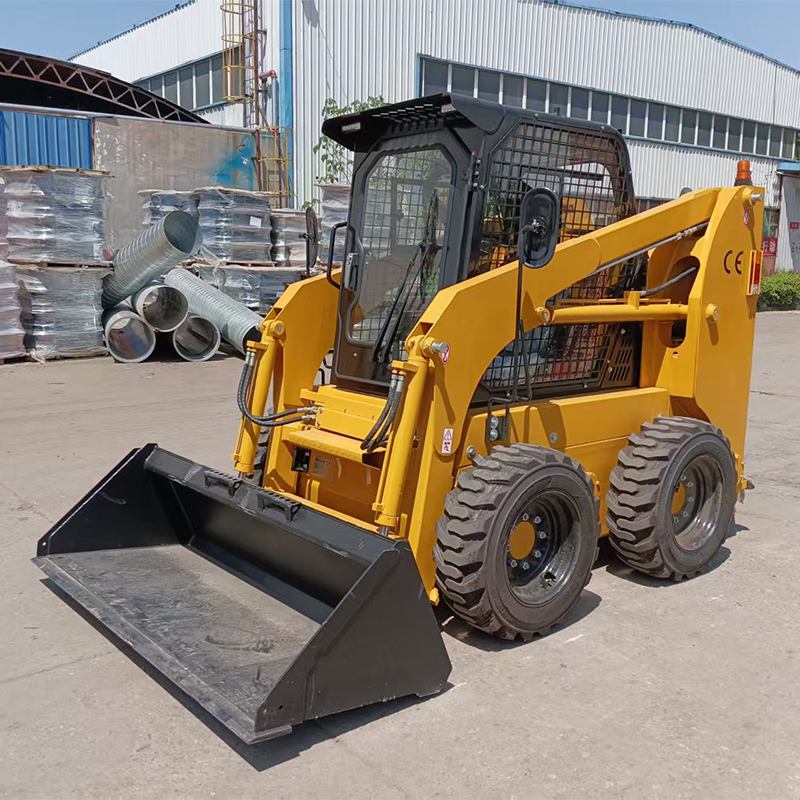

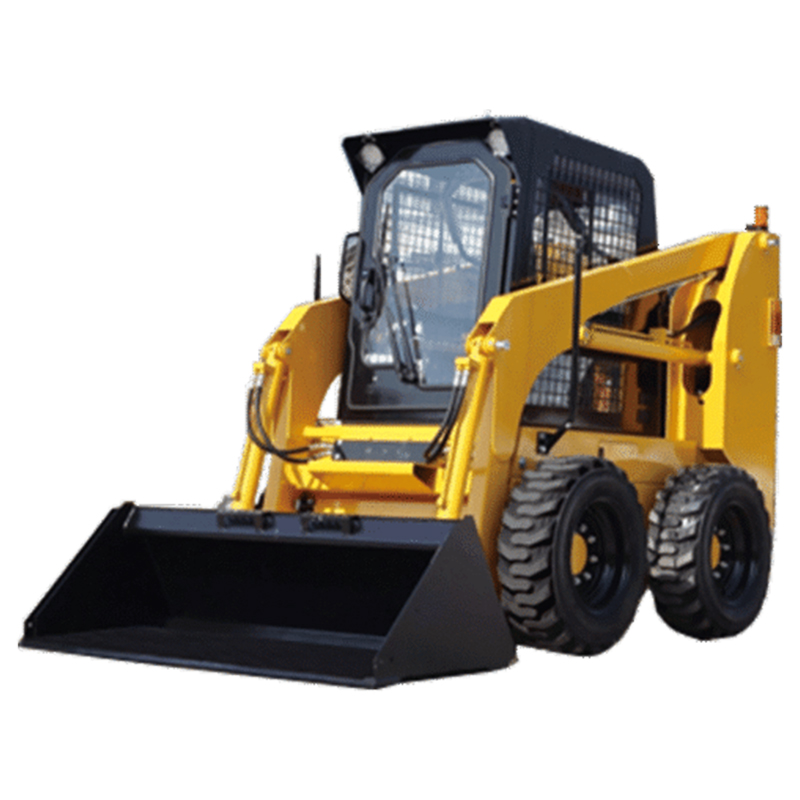

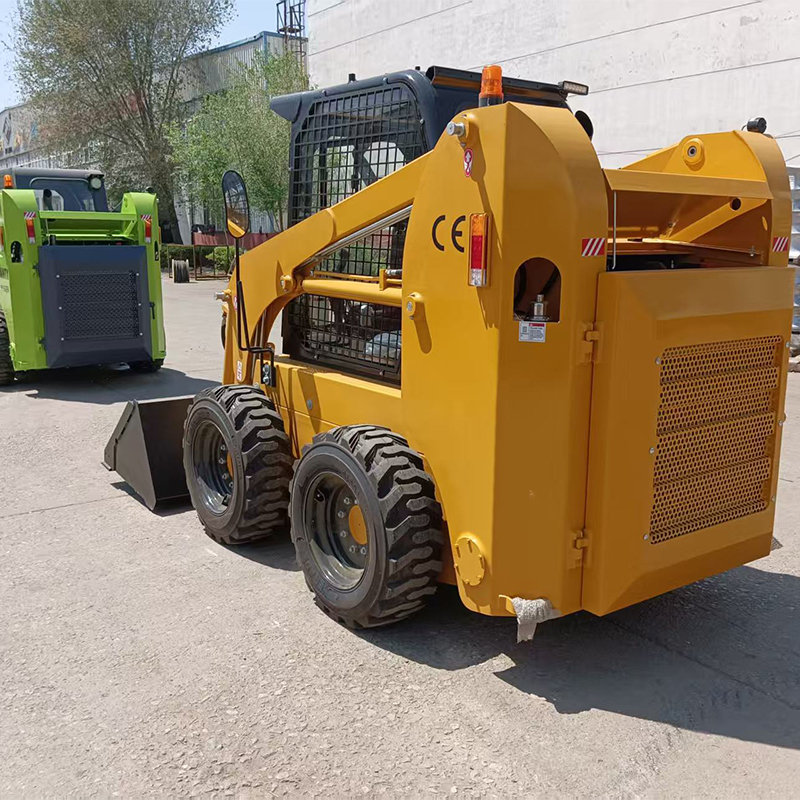

SENDEMACH SWL65 Wheeled Skid Steer Loader – Agile, Powerful, Built for Efficiency
The SWL65 is a versatile wheel-type skid steer loader designed to handle a wide range of material handling and site preparation tasks in tight spaces. With four-wheel drive, a strong lifting capacity, and compatibility with dozens of attachments, it is an ideal solution for small contractors, farmers, equipment rental businesses, and municipal maintenance crews.
Thanks to its hydraulic quick-attach system and optional joystick control, operators can switch tools in seconds and work more comfortably and efficiently.
Key Features：
Rated Load:
➤ 850 kg
➤ Suitable for medium-duty lifting, loading, pushing, and trenchingEngine Options:
➤ Yunnei / Xinchai / Kubota / Perkins
➤ Power range: 50–55 kW
➤ Available with EPA Tier 4 / Euro 5 / CE certification for global exportOperating Weight:
➤ Approx. 3000–3300 kgBucket Capacity:
➤ Standard: 0.5 m³
➤ Optional:4-in-1 bucket
Pallet forks
Grapple bucket
Hydraulic breaker
Auger
Sweeper
Snow blade / Snow blower
Trencher
Hydraulic System:
➤ High-flow auxiliary hydraulics for powered attachments
➤ Hydraulic quick-coupler system
➤ Optional pilot joystick controls for precisionFlexible Maneuverability:
➤ 360° skid turning, small turning radius
➤ High mobility on concrete, asphalt, and firm soilOperator Comfort & Safety:
➤ Enclosed cab with heater/fan (A/C optional)
➤ Shock-absorbing seat, safety belt
➤ Optional rearview camera, LED work lightsOEM & Customization Support:
➤ Custom colors, logo, decals, packaging
➤ Attachments and accessory kits
➤ CE/EPA certificates and manuals for import compliance
Tags:
Technical parameter
| Model | SWL65 |
| Operating weight(kg) | 3400 |
| Rated load(kg) | 950 |
| Bucket capacity(m³) | 0.5 |
| Max Speed(km/h) | 12 |
| Max traction(kN) | ≥28.2 |
| Max breakout(kN) | ≥20 |
| Lifting time of boom(s) | 7 |
| Manufacturer | XINCHAI |
| Model | A498BZG/T |
| Rated power(kW/rpm) | 55/2500 |
| Engine displacement(L) | 3.17 |
| Overall operating height(mm) | 4070 |
| Height to bucket hinge pin(mm) | 3150 |
| Height to top of cab(mm) | 2160 |
| Height to bottom of level bucket(mm) | 2983 |
| Without bucket length(mm) | 2880 |
| Overall length with bucket(mm) | 3580 |
| Dumping angle at maximum height(°) | 40 |
| Dumping height(mm) | 2450 |
| Dumping reach(mm) | 700 |
| Rollback of bucket on ground(°) | 30 |
| Rollback of bucket at full height(°) | 104 |
| Wheelbase(mm) | 1115 |
| Ground clearance(mm) | 205 |
| Angle of departure(°) | 20 |
| Front turning radius without bucket(mm) | 1250 |
| Front tuning radius(mm) | 2112 |
| Rear tuning radius(mm) | 1774 |
| Rear axle to bumper(mm) | 1082 |
| Tread width(mm) | 1500 |
| Width(mm) | 1880 |
| Bucket width(mm) | 1880 |
