Products Description
China mini excavator models have become one of the most popular choices in the global construction and agriculture industries. Thanks to competitive pricing, fast production, and continuous improvement in technology, Chinese manufacturers now offer machines that are widely used for landscaping, small construction jobs, farming, trenching, and municipal works.
In recent years, the export volume of China mini excavators has grown rapidly, attracting buyers from Europe, North America, South America, and Southeast Asia. For businesses seeking cost-effective and reliable equipment, choosing a Chinese brand has become a mainstream option.

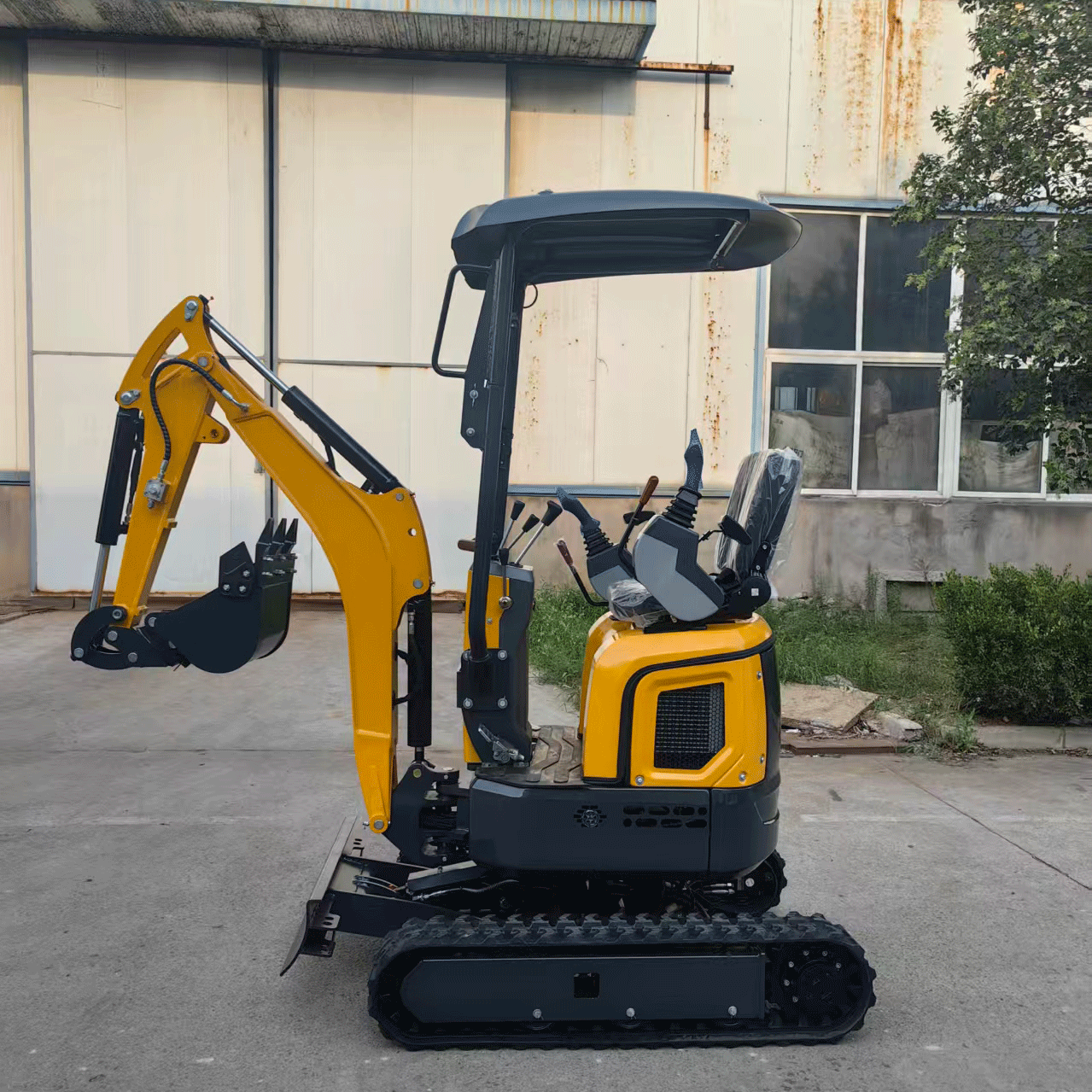

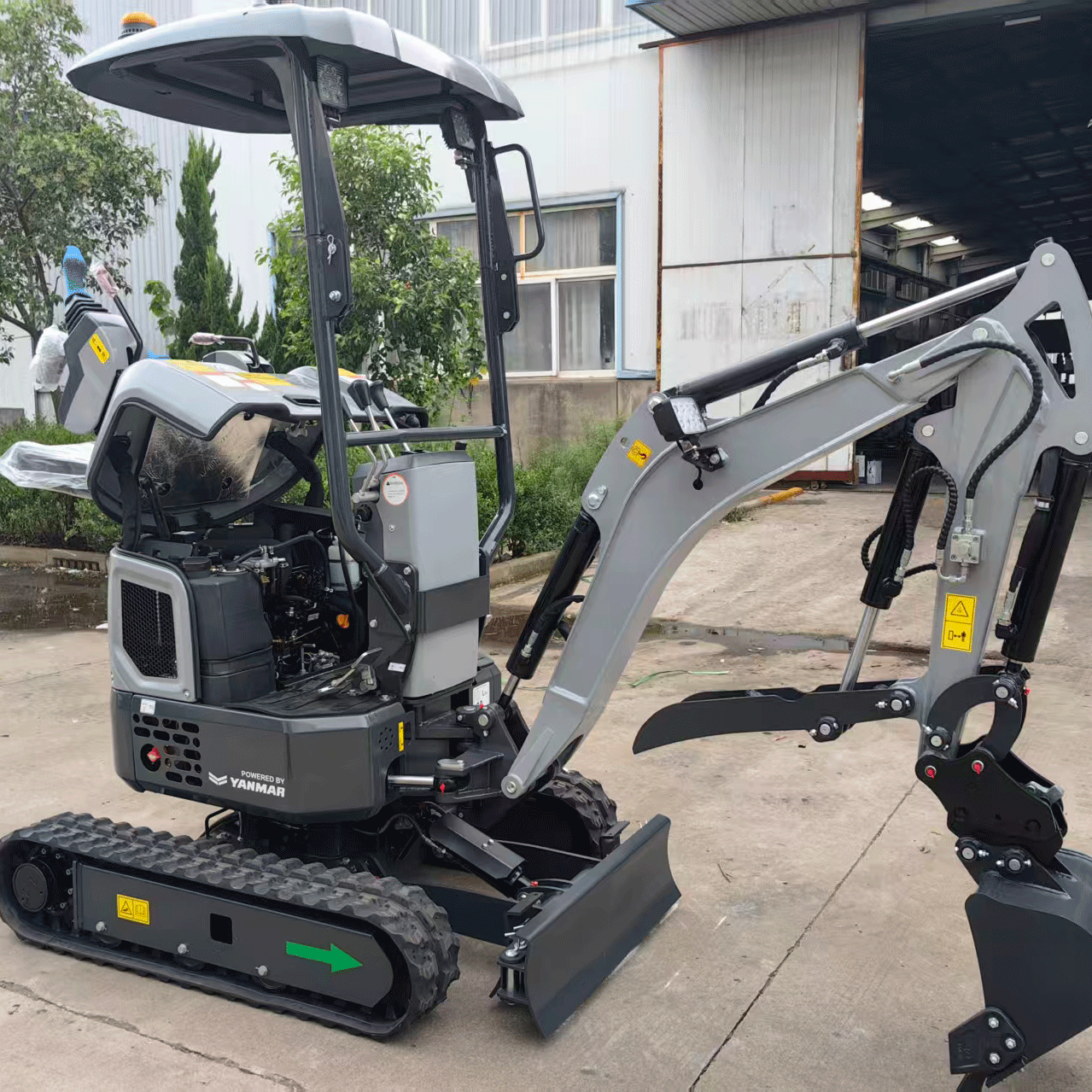

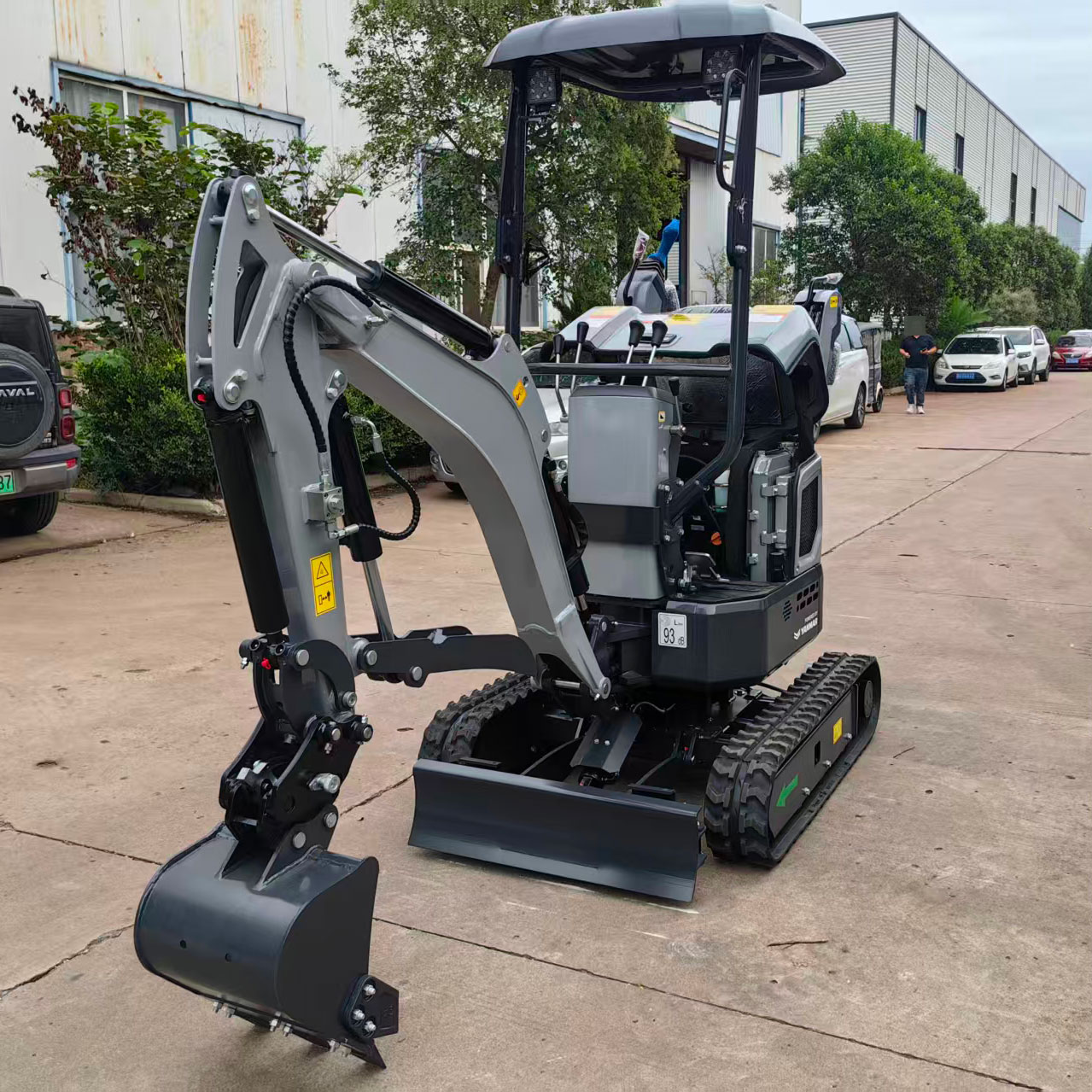

SENDEMACH 1.2 Ton Mini Excavator – Product Introduction
The SENDEMACH 1.2-ton mini excavator is a compact, efficient, and versatile machine designed for construction, landscaping, agriculture, and municipal engineering. With its strong performance, flexible operation, and high cost-effectiveness, it is an ideal choice for contractors, farm owners, rental companies, and small machinery dealers.

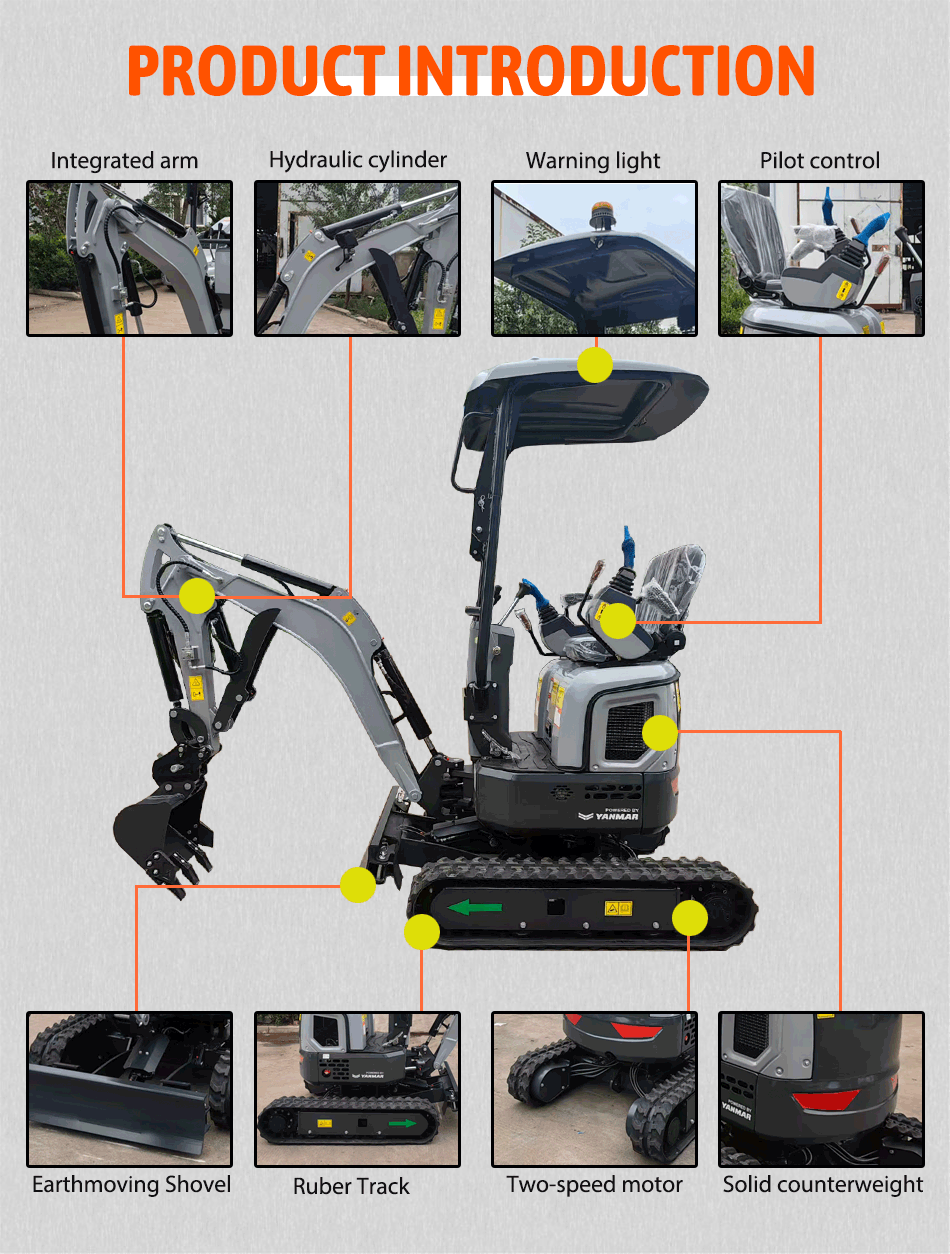

Key Features
1. High-Quality Engine
Equipped with a reliable engine such as Yanmar 3TNV70 or optional Kubota, compliant with EPA / Euro 5 / CE emission standards.
Provides stable power output with approximately 10.3 kW at 2200 rpm.
2. Compact Zero-Tail Design
The upper structure offers 360° zero-tail swing, allowing the machine to work freely in narrow spaces without worrying about rear-end collisions—perfect for urban jobs, gardens, greenhouses, and small construction sites.
3. Strong Hydraulic System
The hydraulic system delivers smooth and precise control, suitable for digging, trenching, leveling, breaking, and clearing.
Compatible with various attachments including:
Standard bucket
20/40/80 cm buckets
Hydraulic breaker
Auger
Ripper
Thumb/grapple
Quick coupler
4. Durable Structure & Stable Performance
Although compact, the 1.2-ton excavator is designed with a reinforced chassis and efficient cooling system, ensuring stability and long service life even in demanding environments.
Why Choose SENDEMACH?
Professional manufacturer of 1–4 ton mini excavators
Full CE / EPA / ISO certifications for export
Flexible customization (color, logo, engine, hydraulic brand, cabin/canopy options)
High cost-performance for global markets
Suitable for dealers, rental fleets, and end users
Tags:
Technical parameter
| Operating weight（T） | 1.2 |
| Bucket capacity(m³） | 0.03 |
| Engine model | YANMAR 3TNV70 |
| Rated power (kw/r/min) | 10.3/2200 |
| Authentication | Euro V |
| Max.flow (L/min) | 22 |
| Working pressure (Mpa) | 17.5 |
| Fuel tank capacity (L) | 13 |
| Hydraulic oil tank capacity (L) | 13 |
| Travel speed (km/h) | 1.2/2.4 |
| Swing speed (r/min) | 10.5 |
| Max. climbing degree (%) | 58 |
| Arm digging force(KN) | 6.5 |
| Bucket digging force (KN) | 11 |
| Average grounding pressure (Kpa) | 31 |
| Largest traction(KN) | 13 |
| A-Overall length (mm) | 3070 |
| B-Overall width (mm) | 880/1100 |
| C-Overall height (to top of boom)(mm) | 1170 |
| D-Overall height (to top of cab)(mm) | 2400 |
| E-Counterweight ground clearance(mm) | 400 |
| F-Min. ground clearance (mm) | 130 |
| G-Tail swing radius (mm) | 550 |
| H-Track ground length(mm) | 1080 |
| J-Track length (mm) | 1400 |
| K-Track gauge (mm) | 670（920Extended） |
| L-Track width (mm) | 850-1100 |
| M-Track shoe width (mm) | 180 |
| N-Turntable width (mm) | 850 |
| O-Max. digging height (mm) | 3060 |
| P-Max. dumping height (mm) | 2080 |
| Q-Max. digging depth (mm) | 1830 |
| R-Max. vertical wall digging depth (mm) | 1610 |
| T-Max. digging reach (mm) | 3540 |
| U-Max. digging reach at ground level (mm) | 3500 |
| V-Min. swing radius (mm) | 1560 |
| X-Distance between center of rotation and tail length (mm) | 550 |
| Y-Track shoe thickness (mm) | - |
| Z-Height of counterweight (mm) | 735 |
| A1-Ground length (in transportion)(mm) | 1660 |
| Arm length (mm) | 890 |
| Boom length (mm) | 1500 |
| Deflection angle left°/right° | 50°/70° |
| Maximum dozing height/depth (mm) | 168/275 |
