Products Description

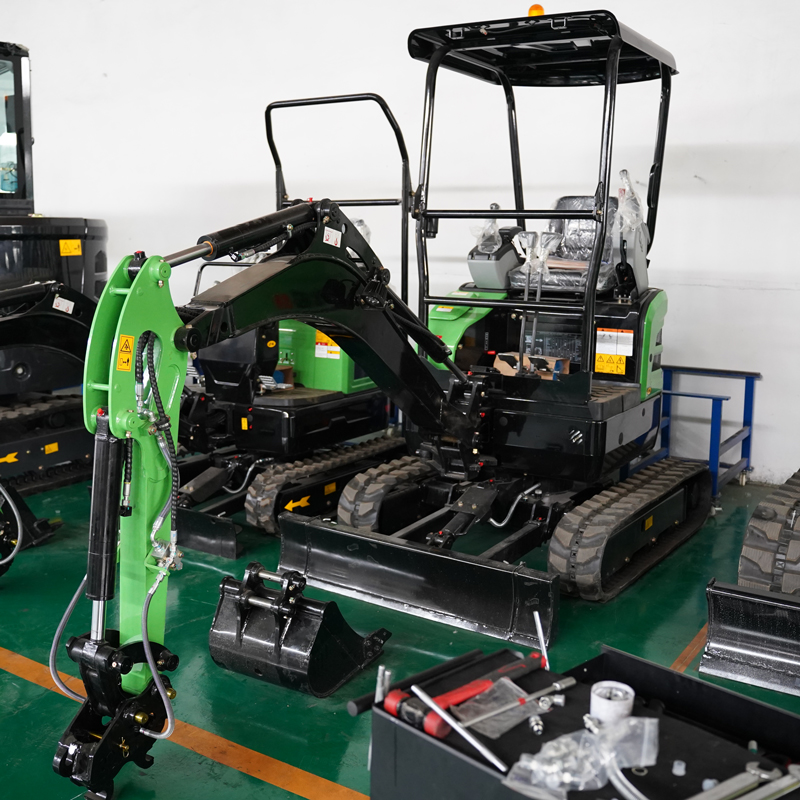

SD17 Mini Excavator – Zero-Tail Power for Demanding Jobsites
The SENDEMACH SD17 is a 1.88-ton compact mini excavator powered by the highly reliable Kubota D902 diesel engine, offering excellent fuel efficiency, low noise, and long-lasting durability. Designed with a zero tail swing structure, the SD17 provides superior maneuverability in tight and confined job sites, making it ideal for urban construction, landscaping, utilities, and rental fleets.
Its advanced hydraulic system delivers smooth, precise operation, while the reinforced chassis and boom ensure stability and long-term performance under tough working conditions. The SD17 supports a wide range of attachments, making it a versatile, multi-purpose machine for professionals.
Key Features
Kubota D902 Diesel Engine — Industry-proven performance, clean emissions, low fuel consumption
Zero Tail Swing Design — Safe and flexible operation in narrow or crowded areas
Powerful Hydraulic System — Smooth control and improved digging efficiency
Robust Structural Components — Reinforced boom, arm, and undercarriage
Multiple Work Attachments — Bucket, auger, hammer, ripper, rake, quick hitch, thumb, etc.
Easy Transportation — Compact design fits on small trailers and trucks

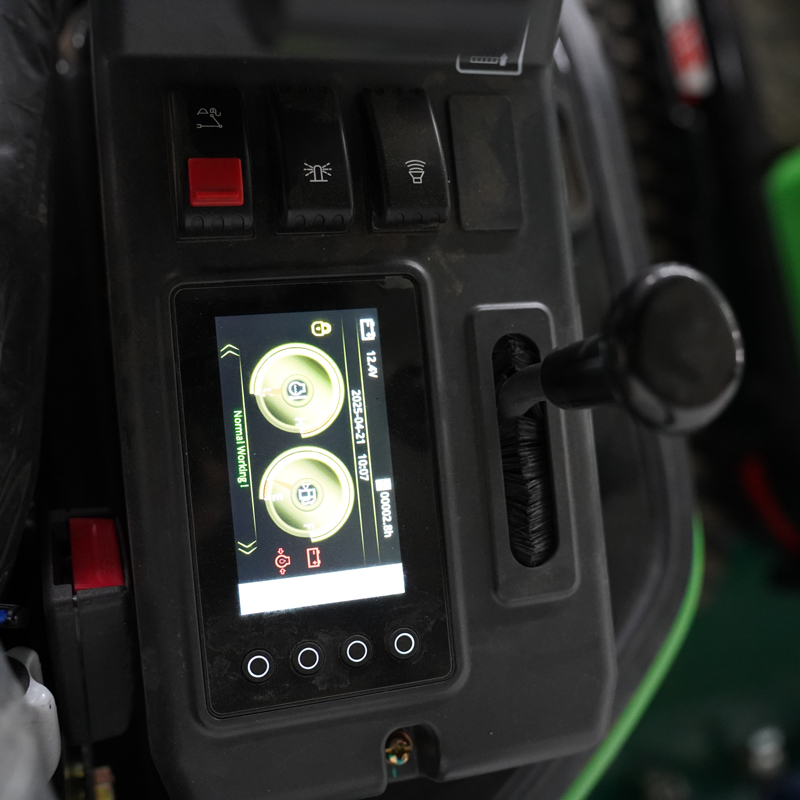

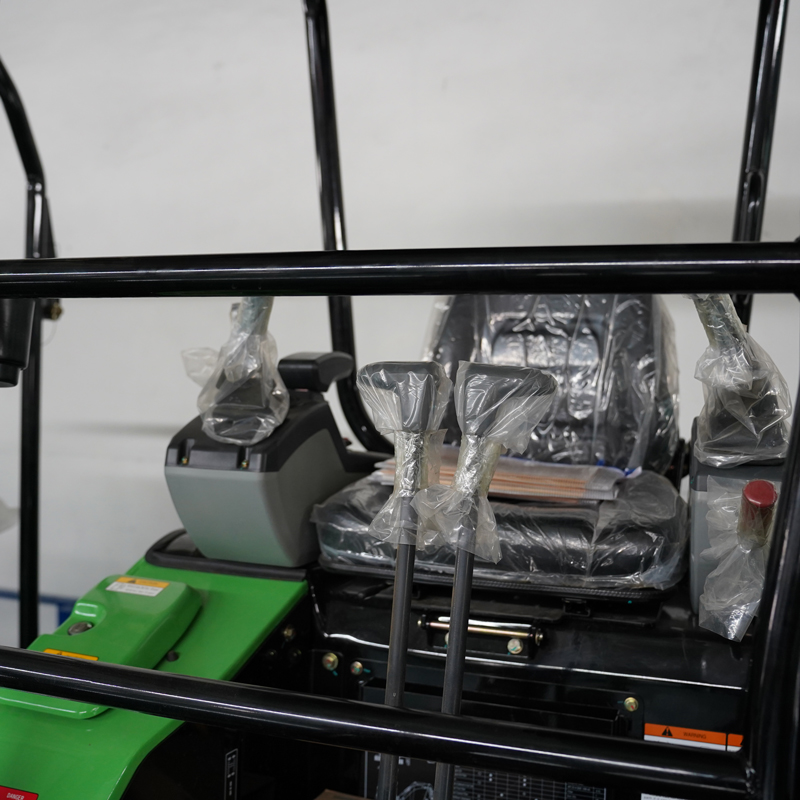

Operator-Friendly Layout — Comfortable seat, simple controls, optimized visibility
Typical Applications
Urban construction & housing projects
Landscaping and garden engineering
Cable, water, and sewer trenching
Farm and orchard operations
Light demolition and material handling
Rental business and machinery leasing
Technical Highlights
Operating weight: 1,880 kg
Engine: Kubota D902 (EPA Tier 4 / EU V compliant)
Zero tail swing structure for narrow spaces
Hydraulic pump: High-efficiency design (gear or plunger pump options)
Bucket capacity: 0.04–0.05 m³
Track type: Rubber tracks for stable, low-damage traction
Optional upgrades:
Auxiliary hydraulic lines
Quick hitch
Closed cabin
Two-speed travel
Boom swing
Retractable undercarriage
Why Choose SENDEMACH SD17?
Professional manufacturer of compact excavators
Strict quality control with international standards
Reliable engines and OEM-grade hydraulic components
Strong after-sales support for global dealers
Custom configurations available for different markets
Tags:
Technical parameter
| Operating weight（T） | 1.88 |
| Bucket capacity(m³） | 0.04 |
| Engine model | Kubota D902 |
| Rated power (kw/r/min) | 10.3/2200 |
| Authentication | Euro V |
| Max.flow (L/min) | 39.6 |
| Working pressure (Mpa) | 21 |
| Fuel tank capacity (L) | 19 |
| Hydraulic oil tank capacity (L) | 21 |
| Travel speed (km/h) | 2.0/3.2 |
| Swing speed (r/min) | 10.5 |
| Max. climbing degree (%) | 58 |
| Arm digging force(KN) | 8.6 |
| Bucket digging force (KN) | 13.5 |
| Average grounding pressure (Kpa) | 28.0 |
| Largest traction(KN) | 16 |
| A-Overall length (mm) | 3707 |
| B-Overall width (mm) | 1000 |
| C-Overall height (to top of boom)(mm) | 1170 |
| D-Overall height (to top of cab)(mm) | 2424 |
| E-Counterweight ground clearance(mm) | 484 |
| F-Min. ground clearance (mm) | 175 |
| G-Tail swing radius (mm) | 665 |
| H-Track ground length(mm) | 1210 |
| J-Track length (mm) | 1588 |
| K-Track gauge (mm) | 760 (1090 after extension) |
| L-Track width (mm) | 990 (1320 after extension) |
| M-Track shoe width (mm) | 230 |
| N-Turntable width (mm) | 1000 |
| O-Max. digging height (mm) | 3327 |
| P-Max. dumping height (mm) | 2323 |
| Q-Max. digging depth (mm) | 2110 |
| R-Max. vertical wall digging depth (mm) | 1600 |
| T-Max. digging reach (mm) | 3947 |
| U-Max. digging reach at ground level (mm) | 3889 |
| V-Min. swing radius (mm) | 1625 |
| X-Distance between center of rotation and tail length (mm) | 665 |
| Y-Track shoe thickness (mm) | 5 |
| Z-Height of counterweight (mm) | 794 |
| A1-Ground length (in transportion)(mm) | 2611 |
| Arm length (mm) | 950 |
| Boom length (mm) | 1830 |
| Deflection angle left°/right° | 50°/70° |
| Maximum dozing height/depth (mm) | 240/198 |
