Products Description

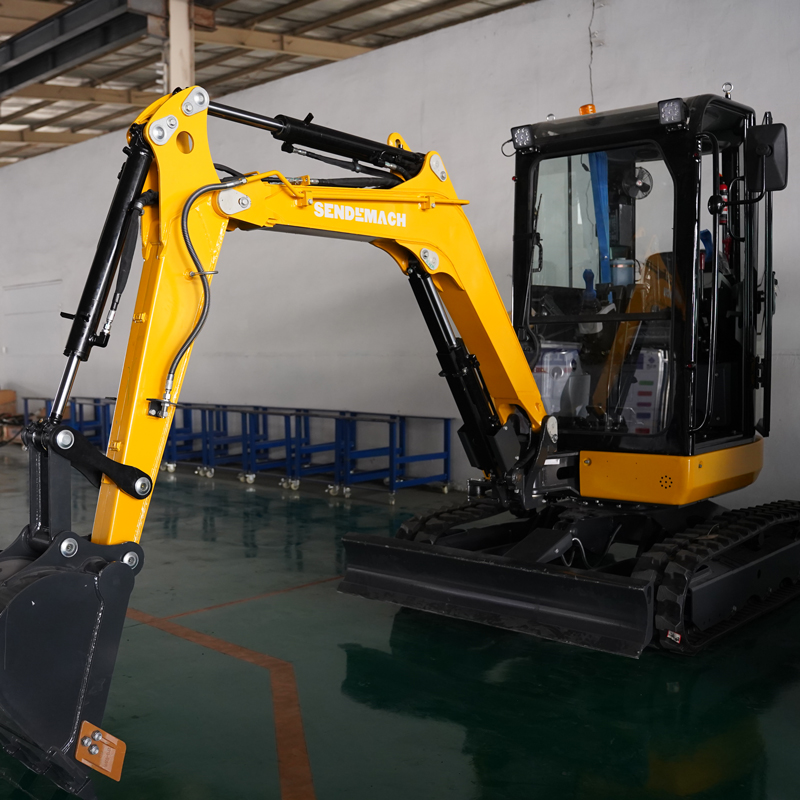

SD30 Mini Excavator – Powerful Yanmar Engine & Comfortable Cabin for Professional Use
The SENDEMACH SD30 is a 2.6-ton high-performance mini excavator engineered for contractors, rental fleets, landscaping companies, and construction professionals who require a strong, reliable, and comfortable machine for continuous operation.
Powered by the Yanmar 3TNV80F diesel engine, the SD30 delivers excellent power output, lower fuel consumption, clean emissions, and the durability expected from one of the industry’s most trusted engine brands.

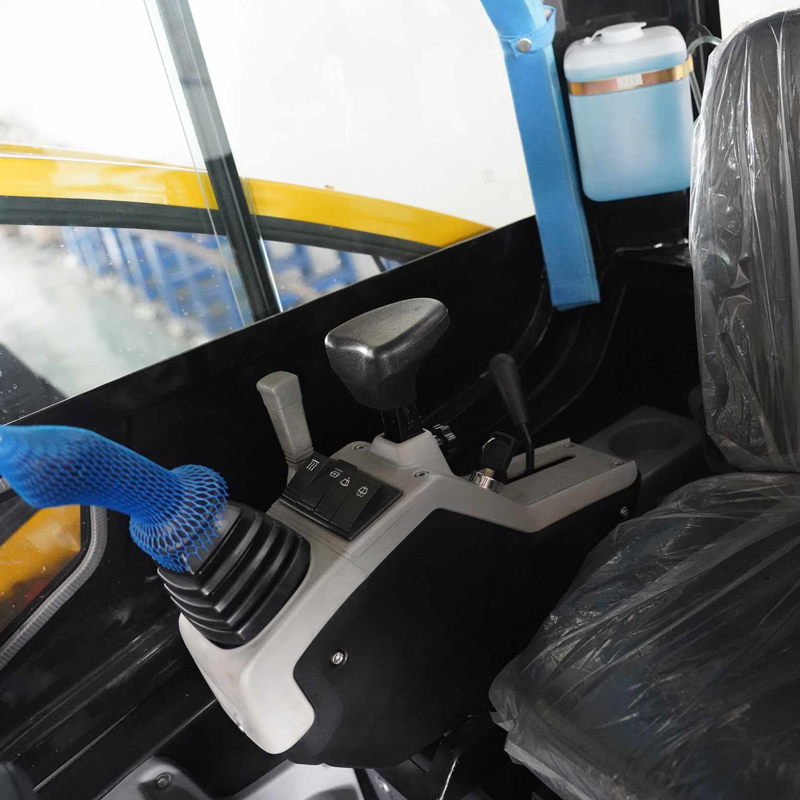

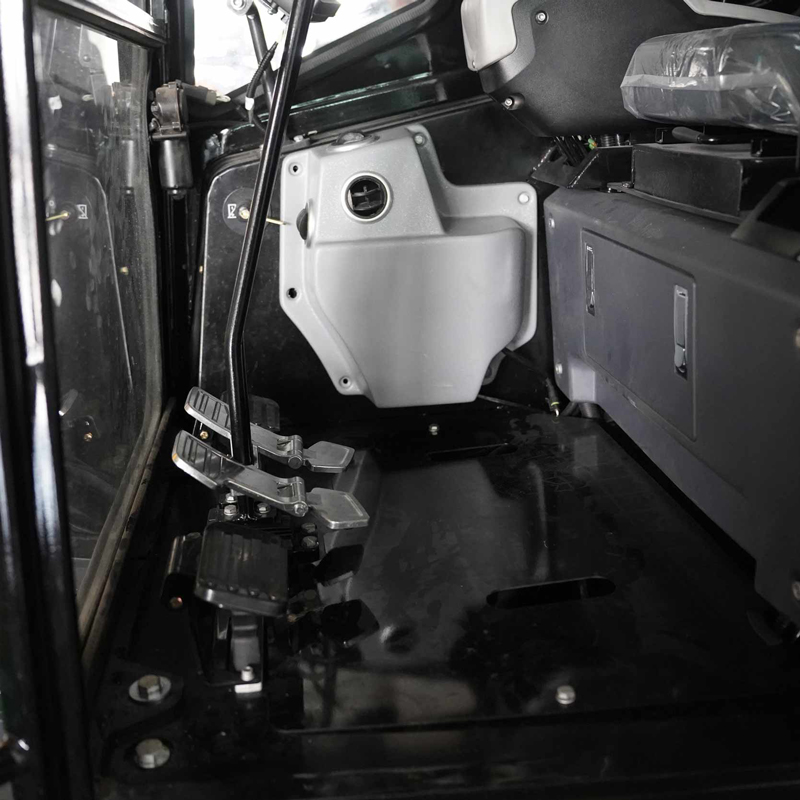

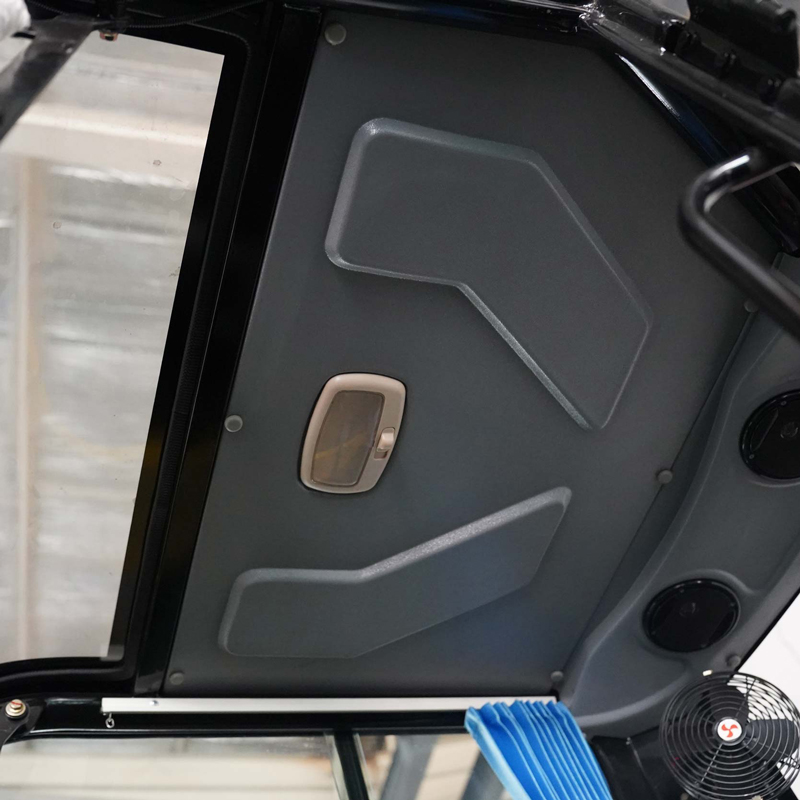

Equipped with a fully enclosed operator cabin, the SD30 offers enhanced safety, weather protection, and greatly improved operator comfort—ideal for long working hours and all-season projects.
The machine features a reinforced boom, robust undercarriage, responsive hydraulic system, and compatibility with a wide range of attachments, making it one of the most versatile and efficient excavators in its class.
Key Features
Yanmar 3TNV80F Engine — Strong torque, low fuel consumption & reliable performance
Fully Enclosed Cabin — Comfort, safety, and weather protection (A/C optional)
2.6 Ton Operating Weight — Excellent stability and digging power
Precision Hydraulic System — Smooth operation and improved efficiency
Durable Construction — Reinforced boom, frame, and undercarriage for long-term use
Wide Attachment Compatibility — Bucket, auger, breaker, ripper, thumb, rake, quick hitch, etc.
Easy Service & Maintenance — Convenient access to all major components
Typical Applications
General construction and earthmoving
Landscaping & municipal engineering
Utility trenching and pipeline work
Agriculture & orchard operations
Roadside and urban infrastructure projects
Rental and machinery leasing companies
Technical Highlights
Operating weight: 2,600 kg (actual weight)
Engine: Yanmar 3TNV80F (EPA/EU-compliant)
Cabin: Fully enclosed cabin with optional A/C
Bucket capacity: 0.06–0.08 m³
Large, stable chassis for heavy-duty tasks
Hydraulic system designed for precise control
Optional configurations:
Two-speed travel
Steel or rubber tracks
Auxiliary hydraulic lines
Boom swing
Additional LED work lights
Quick hitch
Why Choose SENDEMACH SD30?
Professional-grade mini excavator with strong digging capabilities
Reliable Japanese Yanmar engine for long-term stability
Comfortable, enclosed cabin suitable for long-hour operations
Highly versatile with multiple attachments
Ideal for both contractors and global distributors
Tags:
Technical parameter
| Operating weight（T） | 2.6 |
| Bucket capacity(m³） | 0.08 |
| Engine model | YANMAR 3TNV80F |
| Rated power (kw/r/min) | 15.2/2500 |
| Authentication | Euro V |
| Max.flow (L/min) | 72 |
| Working pressure (Mpa) | 22 |
| Fuel tank capacity (L) | 35 |
| Hydraulic oil tank capacity (L) | 28 |
| Travel speed (km/h) | 2.0/3.2 |
| Swing speed (r/min) | 11.5 |
| Max. climbing degree (%) | 58 |
| Arm digging force(KN) | 14.2 |
| Bucket digging force (KN) | 20 |
| Average grounding pressure (Kpa) | 30.5 |
| Largest traction(KN) | 28 |
| A-Overall length (mm) | 4159 |
| B-Overall width (mm) | 1550 |
| C-Overall height (to top of boom)(mm) | 1636 |
| D-Overall height (to top of cab)(mm) | 2560 |
| E-Counterweight ground clearance(mm) | 535 |
| F-Min. ground clearance (mm) | 320 |
| G-Tail swing radius (mm) | 775 |
| H-Track ground length(mm) | 1600 |
| J-Track length (mm) | 2040 |
| K-Track gauge (mm) | 1250 |
| L-Track width (mm) | 1550 |
| M-Track shoe width (mm) | 250 |
| N-Turntable width (mm) | 1375 |
| O-Max. digging height (mm) | 4132 |
| P-Max. dumping height (mm) | 2742 |
| Q-Max. digging depth (mm) | 2485 |
| R-Max. vertical wall digging depth (mm) | 2240 |
| T-Max. digging reach (mm) | 4610 |
| U-Max. digging reach at ground level (mm) | 4494 |
| V-Min. swing radius (mm) | 2096 |
| X-Distance between center of rotation and tail length (mm) | 775 |
| Y-Track shoe thickness (mm) | 5.5 |
| Z-Height of counterweight (mm) | 300 |
| A1-Ground length (in transportion)(mm) | 2908 |
| Arm length (mm) | 1150 |
| Boom length (mm) | 2015 |
| Deflection angle left°/right° | 47°/73° |
| Maximum dozing height/depth (mm) | 362/383 |
