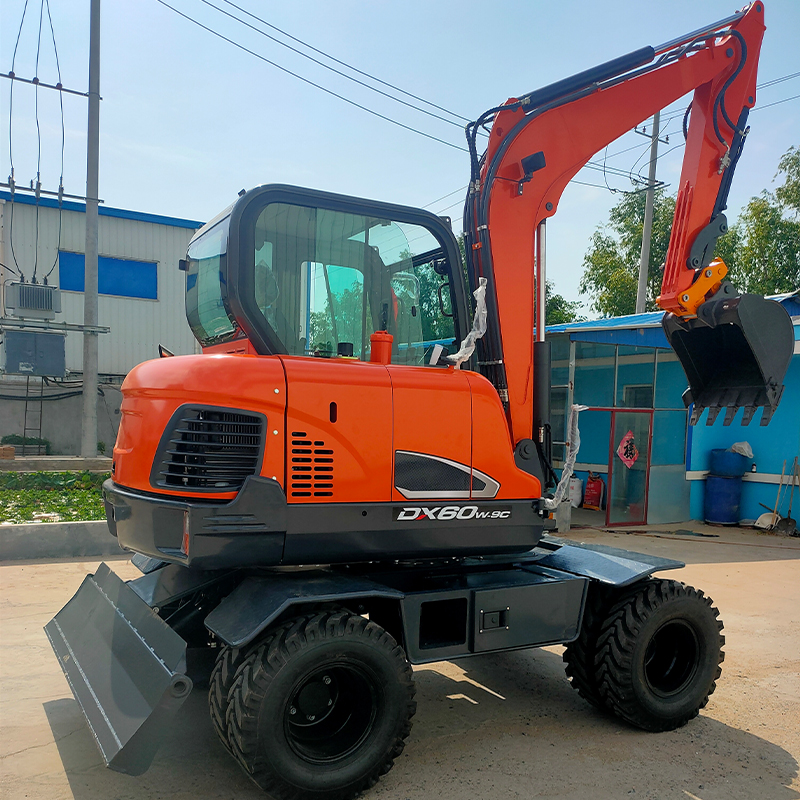

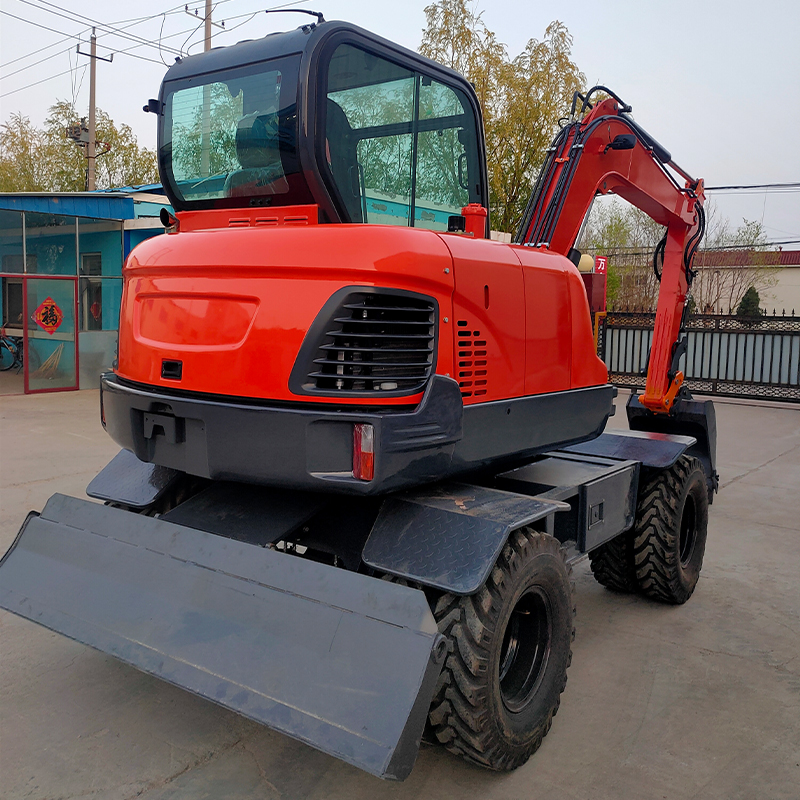

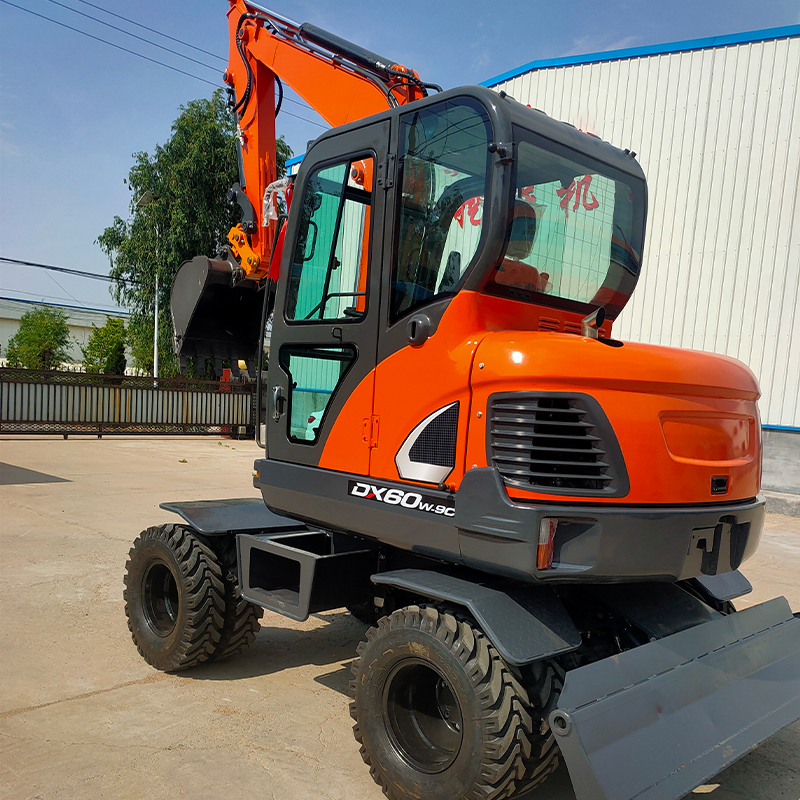

SDW60 6Ton Wheel Excavator

1.Suitable for municipal engineering, landscaping, utility line installation, and other applications.

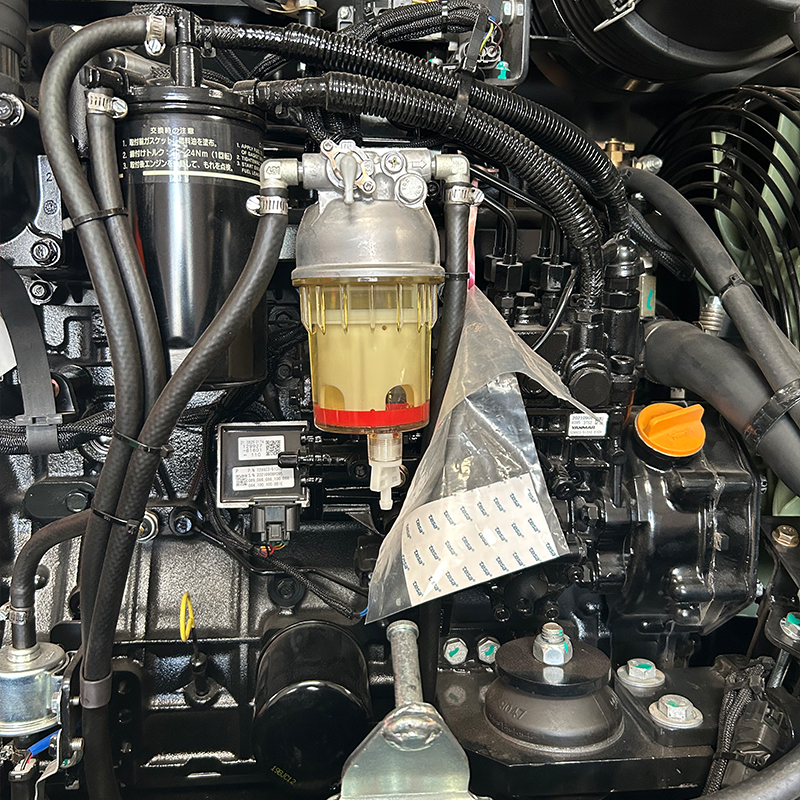

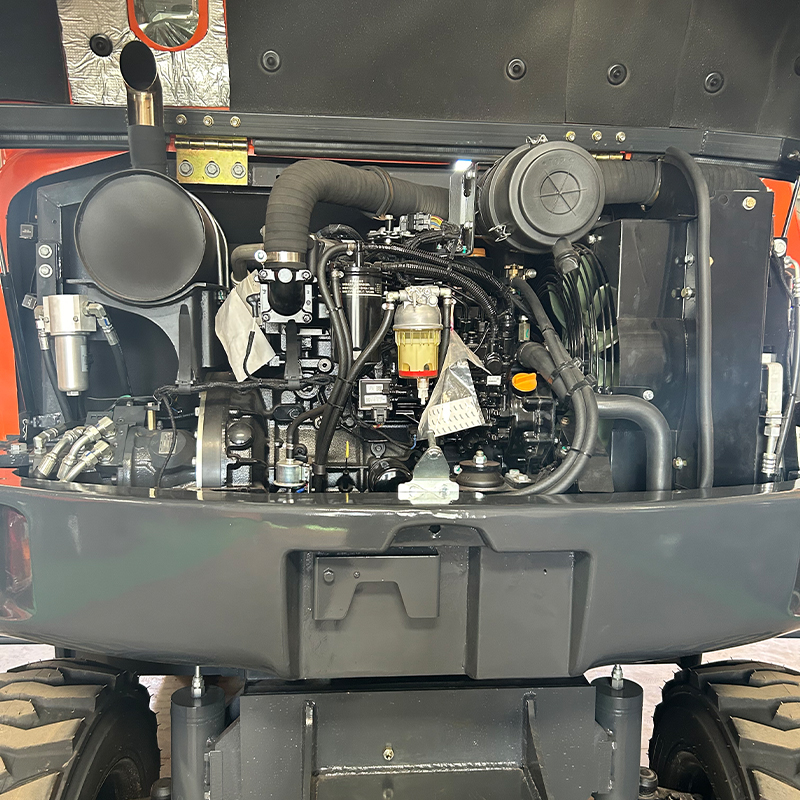

2.Maximum road speed of approximately 30 km/h, ensuring efficient site-to-site travel.

3.Equipped with a Yanmar engine, offering low fuel consumption and good reliability.

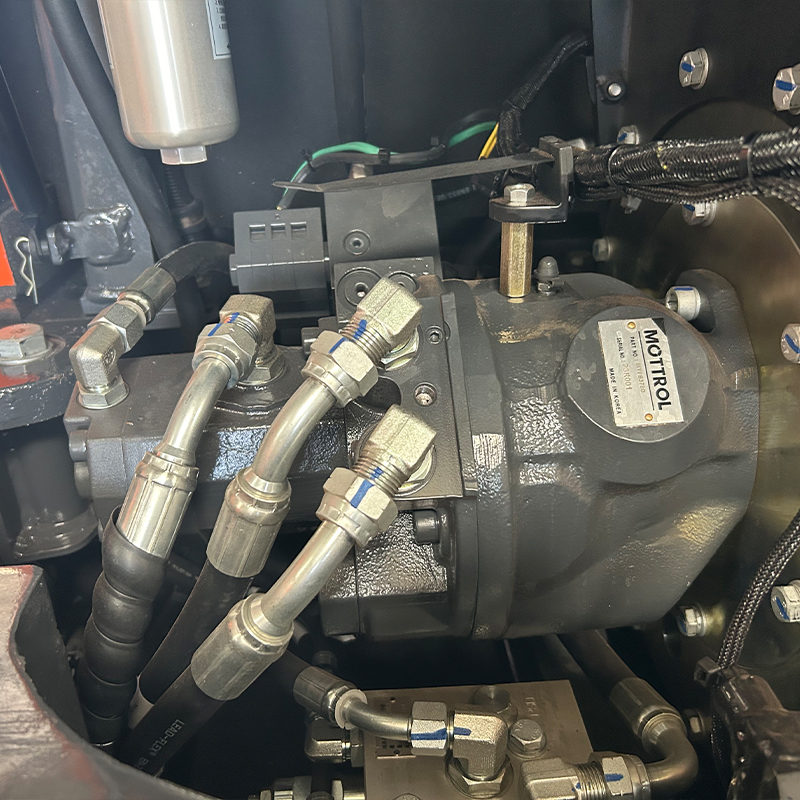

4.The hydraulic system uses a double-variable piston pump, enabling smooth composite movements.

Send Inquiry

Description

Argument

Item	Specification
Model	SDW60
Machine Type	Wheeled Excavator
Operating Weight	5,550 kg
Bucket Capacity	0.18 m³
Engine	YANMAR 4TNV98-EXP
Engine Type	4-cylinder, Water-cooled, Naturally Aspirated Diesel
Rated Power	42.5 kW (57 HP) @ 2,400 rpm
Engine Displacement	3.32 L
Travel Speed (Low/High)	10 / 30 km/h
Swing Speed	8.7 rpm
Bucket Digging Force	35.3 kN
Arm Digging Force	25.5 kN
Boom Length	3,000 mm
Arm Length	1,600 mm
Maximum Digging Depth	3,494 mm
Maximum Digging Reach	6,089 mm
Maximum Digging Height	5,977 mm
Maximum Dumping Height	4,262 mm
Overall Length	6,120 mm
Overall Width	1,905 mm
Overall Height	2,868 mm
Wheelbase	2,100 mm
Ground Clearance	280 mm
Tail Swing Radius	1,650 mm
Fuel Tank Capacity	120 L
Hydraulic Oil Tank	72 L
Main Hydraulic Pump	Dual Variable Axial Piston Pumps
Main Pump Flow	2 × 60 L/min
