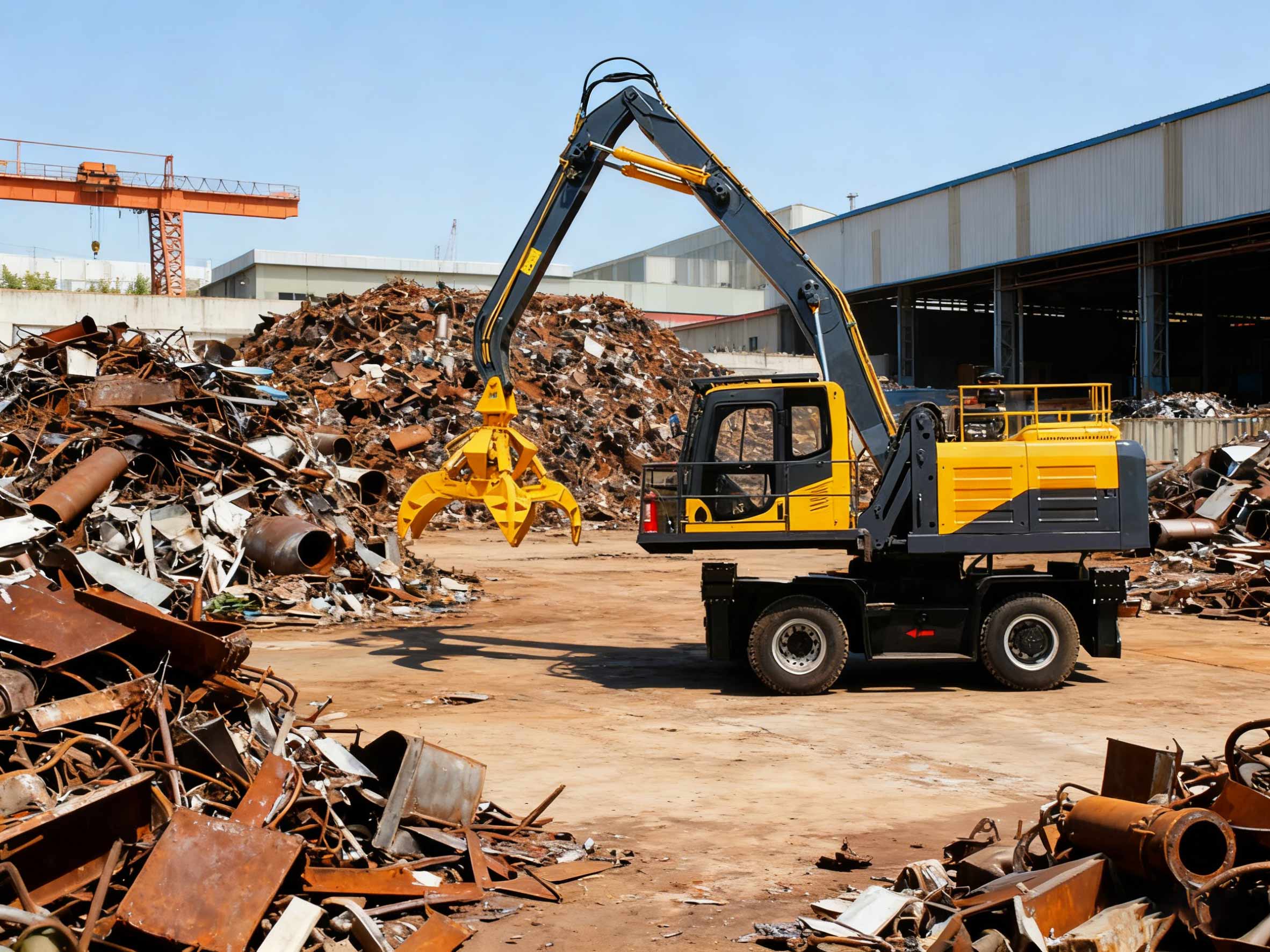

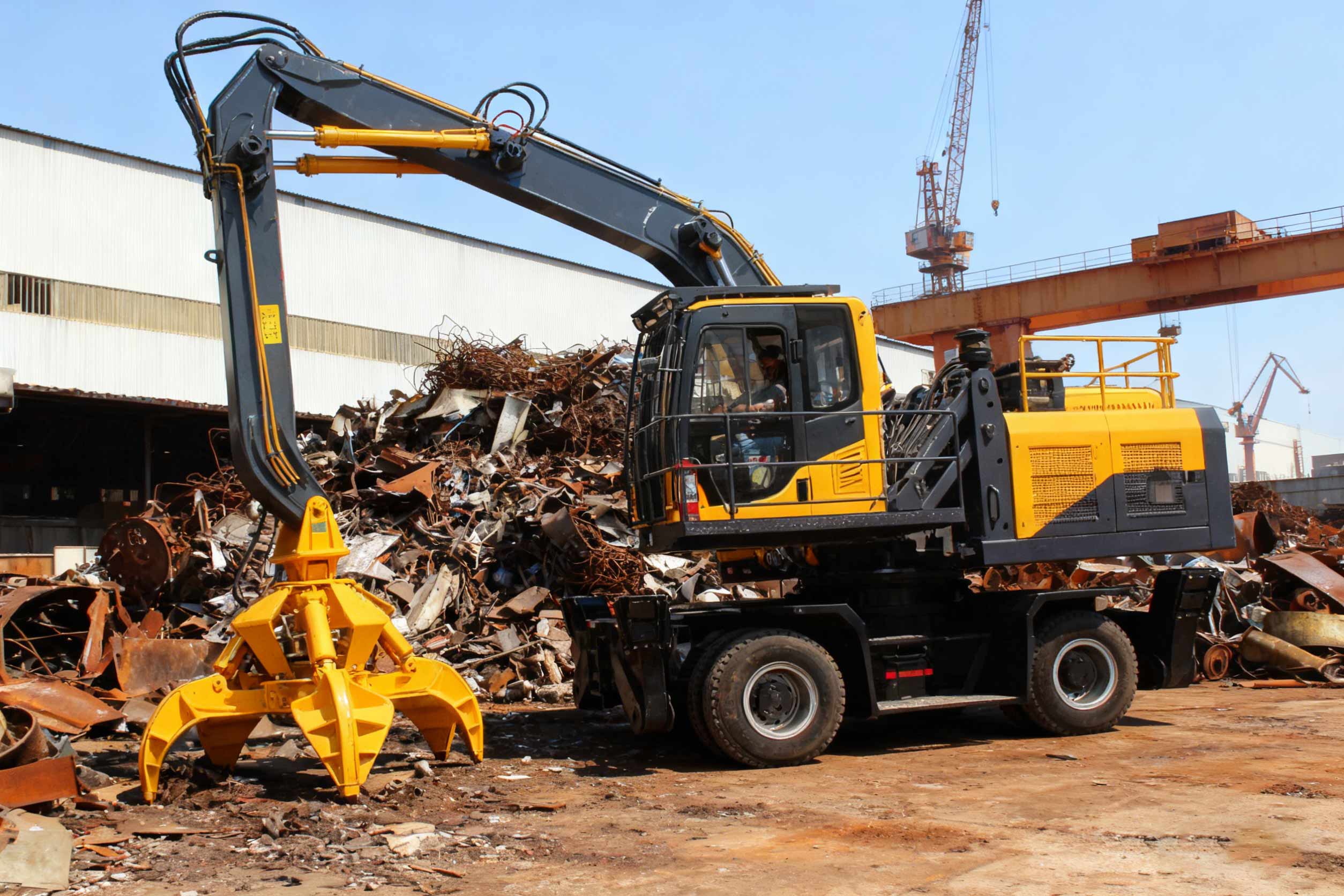

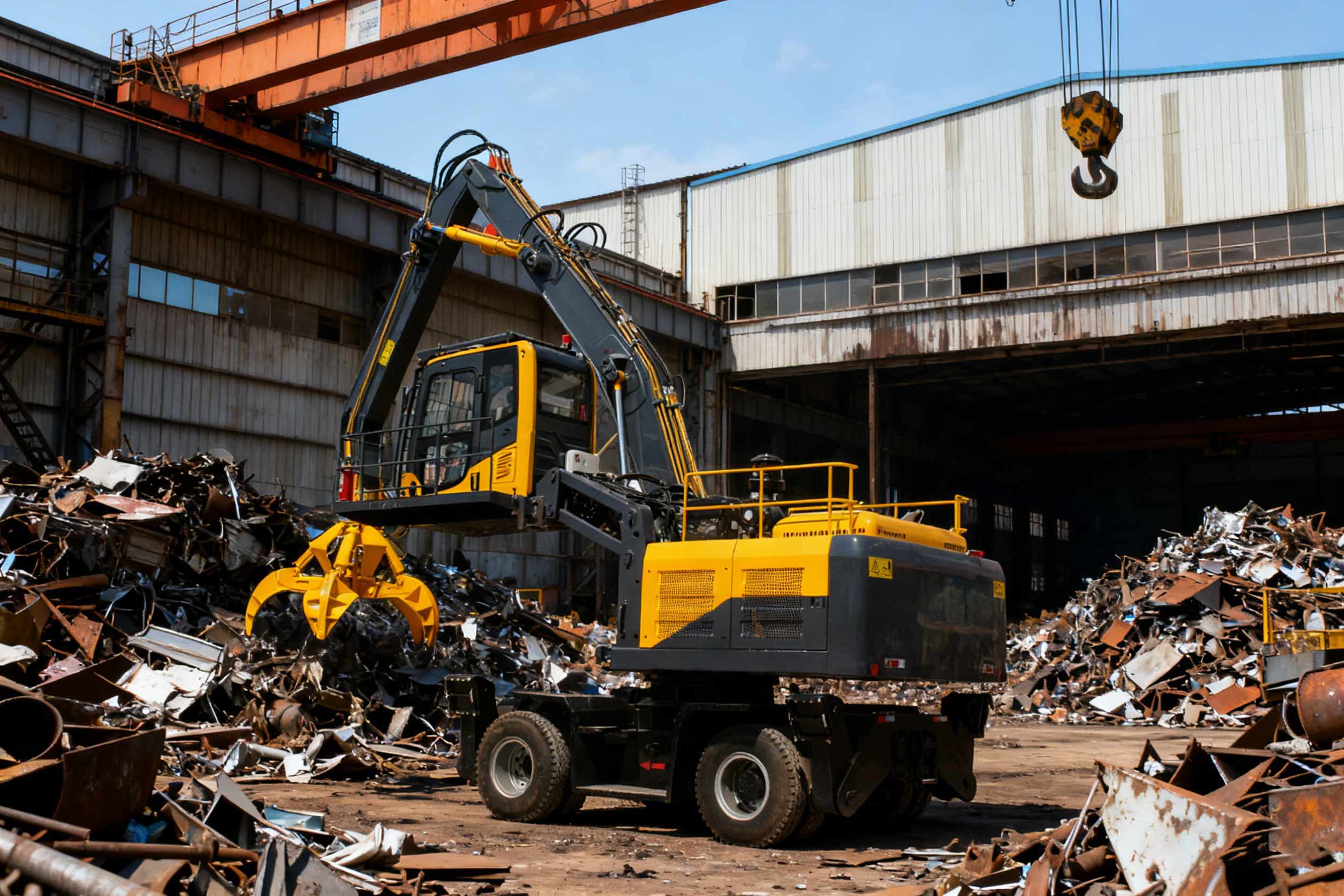

SDLZ260 wheeled material handler is a high-performance dual-power loading and grabbing machine designed for recycling plants, steel mills, ports, scrap yards, and material processing centers. With strong mobility, high reliability, and 360° continuous rotation, it provides efficient bulk-material handling for scrap metal, steel, timber, gravel, industrial waste, and other heavy materials.

1. Power System

The SDLZ260 is equipped with a Dongfeng Cummins 133 kW engine, delivering a maximum torque of 800 N·m at 2200 rpm.

Engine Features:

• Electronic-injection, in-line water-cooled diesel engine designed for long daily operation in steel plants

• High power output ensures strong grabbing and loading capacity

• Meets Euro III emission standards, lower than domestic environmental requirements

• Full monitoring system including fuel level, water temperature, oil pressure, oil contamination alarm, idle alarm, operation time monitor, battery & engine status indicators

2. Hydraulic System

The machine uses an advanced Kawasaki hydraulic system known for its stability and reliability.

Key features:

• Dual-pump, dual-circuit control system for smooth compound action

• High-performance variable plunger pump that adjusts flow according to working load

• Hydraulic control system with forced cooling to ensure 24-hour stable operation

• Boom cylinder bottom fitted with explosion-proof valve to avoid sudden drops

• Steel-wire-protected hydraulic hoses for safety

• 10 μm return-oil filtration to maintain hydraulic oil cleanliness

3. Operator Cab

The SDLZ260 provides a safe and comfortable working environment.

• Ergonomic, fully enclosed cab with strong rigidity and dust isolation

• Equipped with heating & cooling air-conditioner

• 6-way adjustable seat for long-hour comfort

• Front protective screen ensures operator safety

• Roof ventilation system for fresh airflow

• Cab lifting function ensures excellent visibility during stacking and grabbing

4. Traveling System (Wheeled Chassis)

• High-strength axle and drive system designed for fast movement between work areas

• Two-speed travel motor supports different speed requirements

• Durable, large-section tires offer strong ground grip and stability

• Hydraulic brake system with normally-closed safety design

5. Upper Structure and Slewing Mechanism

• 360° unlimited rotation for efficient, uninterrupted loading

• Reinforced upper frame structure made from Q345 high-strength steel

6. Lubrication System

• Automatic centralized lubrication for easy maintenance and improved component lifetime

7. Overload Protection

• Load limiter installed at rear counterweight to prevent overloading and ensure operational safety

8. Grab Attachment

The SDLZ260 uses a high-strength, wear-resistant 360° rotating grab:

• Manufactured from NM650 and Q690 wear-resistant steel

• Powerful bite force ensures efficient grabbing of loose or irregular materials

• Capable of fast, precise grab-release actions

9. Structural Materials

To ensure durability and long service life:

• Upper platform: Q345 steel

• Working boom and arm: Q690 high-strength steel

• Grab teeth: NM650 wear-resistant plate
