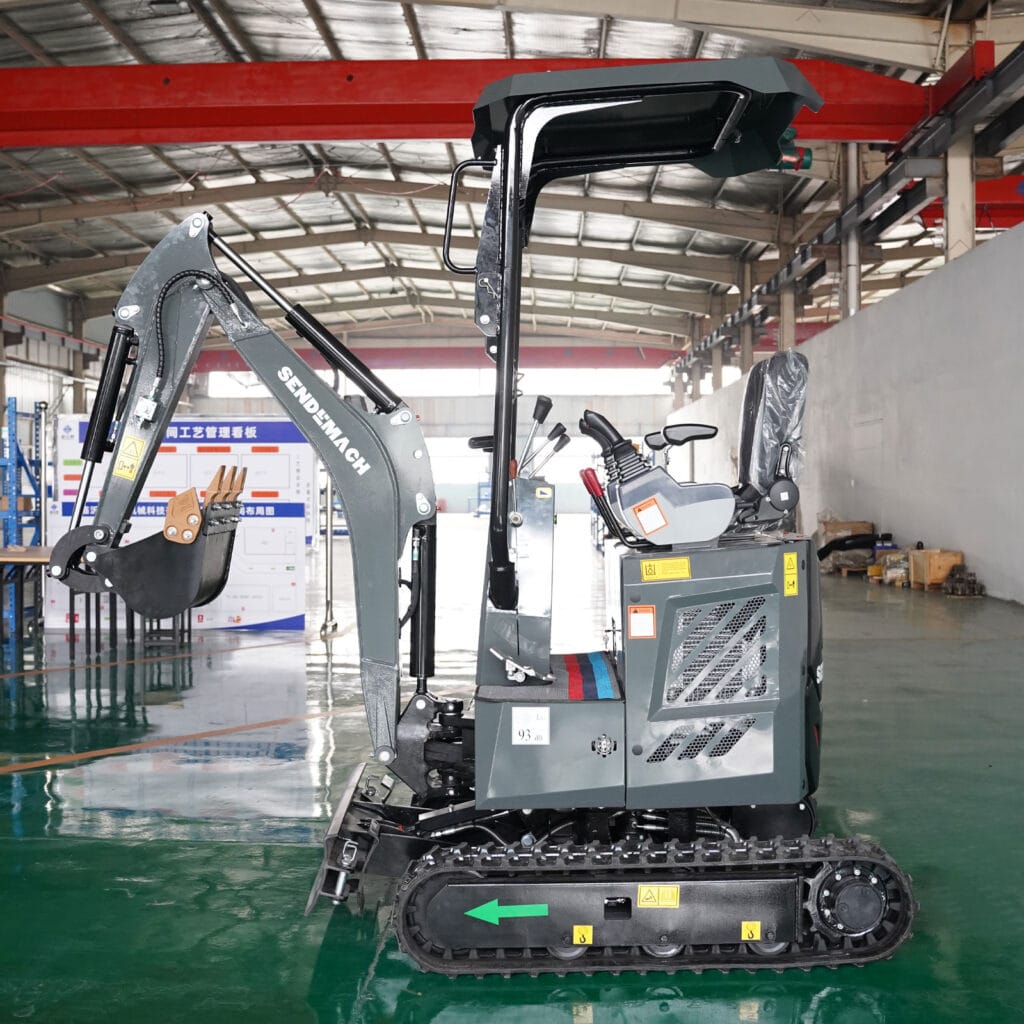

SD12 Crawler Excavator
1. Compact size for effective operation within confined space.
2. Optional for Euro V Yanmar engine, and deflection boom.
3. Rubber tracks, pilot control.
4. Easy to maintain.
5. Wide range of attachments available.
Get your hands on one
Little giants with great performance.
When you have tough work to do in tight spaces, you can count on the SENDEMACH SD12. It’s the smallest of our excavators, but that doesn’t mean you should expect anything but big-time performance … on all kinds of jobs. This tiny giant is nimble and designed to keep its tail close to its tracks so you can tackle work on a variety of job sites.
Downloads
Specifications
Rated Power
10.3kW
Bucket Capacity
0.03M³
Net Weigjt
1160KG
Descriptions
1. With 120° deflection boom, 30° left and 90° right.
2. The competitive price that makes you scream!
3. The appearance is designed by the Italian designer.
4. Increase air outlet, improve the heat dissipation capacity.
5. Optional extension track.
6. The actual weight can be 1.16 Ton.
7. Using S355 steel material which is good steel plate strength.
Swing Boom
Fully hydraulic system with a deflectable arm for more efficient work.
Rugged Construction
Castings have been added to all moving arm joints, and the interface is stamped and bored in one piece on the lathe to improve the service life of the moving arm.
More Stable Chassis
Increase in the number of undercarriage support wheels for a tighter fit between the tracks and more stable driving.
Thoughtful Design
Mecha style appearance, more popular
Technical Parameters
| Net weight（T） | 1.16 |
| Operating weight（T） | 1.24 |
| Bucket capacity(m³） | 0.03 |
| Engine model | YANMAR 3TNV70 |
| Rated power (kw/r/min) | 10.3/2200 |
| Authentication | Euro V |
| Hydraulic pump model | WANY |
| Max.flow (L/min) | 22 |
| Working pressure (Mpa) | 17.5 |
| Control valve model | CHENGDAO |
| Swing motor model | REEWO |
| Travel motor model | KERSTERN/REEWO |
| Fuel tank capacity (L) | 13 |
| Hydraulic oil tank capacity (L) | 13 |
| Travel speed (km/h) | 1.5 |
| Swing speed (r/min) | 10 |
| Max. climbing degree (%) | 58 |
| Arm digging force(KN) | 5.6 |
| Bucket digging force (KN) | 9.2 |
| Average grounding pressure (Kpa) | 33 |
| Largest traction(KN) | 12.6 |
| A-Overall length (mm) | 3053 |
| B-Overall width (mm) | 880 |
| C-Overall height (to top of boom)(mm) | 1170 |
| D-Overall height (to top of cab)(mm) | 2400 |
| E-Counterweight ground clearance(mm) | 400 |
| F-Min. ground clearance (mm) | 130 |
| G-Tail swing radius (mm) | 550 |
| H-Track ground length(mm) | 972 |
| J-Track length (mm) | 1296 |
| K-Track gauge (mm) | 680 |
| L-Track width (mm) | 860 |
| M-Track shoe width (mm) | 180 |
| N-Turntable width (mm) | 850 |
| O-Max. digging height (mm) | 3018 |
| P-Max. dumping height (mm) | 2039 |
| Q-Max. digging depth (mm) | 1809 |
| R-Max. vertical wall digging depth (mm) | 1593 |
| T-Max. digging reach (mm) | 3439 |
| U-Max. digging reach at ground level (mm) | 3390 |
| V-Min. swing radius (mm) | 1591 |
| X-Distance between center of rotation and tail length (mm) | 806 |
| Y-Track shoe thickness (mm) | – |
| Z-Height of counterweight (mm) | 735 |
| A1-Ground length (in transportion)(mm) | 1560 |
| Arm length (mm) | 890 |
| Boom length (mm) | 1500 |
| Deflection angle left°/right° | 50°/70° |
| Maximum dozing height/depth (mm) | 195/195 |
Funtions of Machine
Bucket
Breaker
Earth Tamping Machine
Grass Rake
Hydraulic Thumb Clamp
Lawn Mower
Mechanical Log Grab
Mud Bucket
Narrow Bucket
Scarifier
Screen Bucket
Rotary Drilling
General FAQs
A: We offer a variety of sizes of excavators to fit a variety of projects.
(1) 1-5 tons: Great for small and home projects such as landscaping or trenching.
(2) 6-15 tons: Suitable for medium sized construction and agricultural work.
(3) 16-50 tons: Built for heavy duty industrial and mining work.
A: Our excavators are equipped with high-performance Yanmar diesel engines (for smaller models) and powerful, fuel-efficient engines for larger machines, ensuring reliable operation for all sizes.
A: Yes, we offer a wide range of attachments compatible with all excavator sizes, such as:
(1) Buckets (various capacities);
(2) Hydraulic breakers;
(3) Augers;
(4) Grapples and clamps;
(5) Rippers.
A: Absolutely! We can customize excavators for specific applications, including:
(1) Custom bucket sizes;
(2) Optional boom lengths;
(3) Special configurations for mining or agricultural use.
A: We recommend:
1-5 tons: Home landscaping, light digging, and small-scale projects.
6-15 tons: Medium construction, utility installation, and farm work.
16-50 tons: Large-scale industrial and infrastructure tasks.
Contact our team for expert advice tailored to your needs.
A: Not at all. Our compact excavators are designed for easy maintenance, with:
(1) Accessible engine compartments for quick servicing;
(2) Durable components to minimize wear and tear;
(3) Clear maintenance instructions provided in the user manual.
All our excavators are equipped with fuel-efficient engines to reduce operational costs. Smaller models consume less fuel, while larger models use advanced technologies to optimize fuel usage even in demanding environments.
A: Yes, we offer:
(1) Comprehensive warranties for all models;
(2) Full after-sales support, including technical assistance and spare parts;
(3) Global service through our overseas warehouses.
Delivery times depend on the quantity and location, but with our global distribution network, we ensure timely and reliable shipping.
Yes, we offer preferential prices for bulk orders, making it an excellent option for dealers and distributors.
Contact us through our website and send Inquiry. Our team will assist you in choosing the right excavator for your needs and provide a detailed quote.
