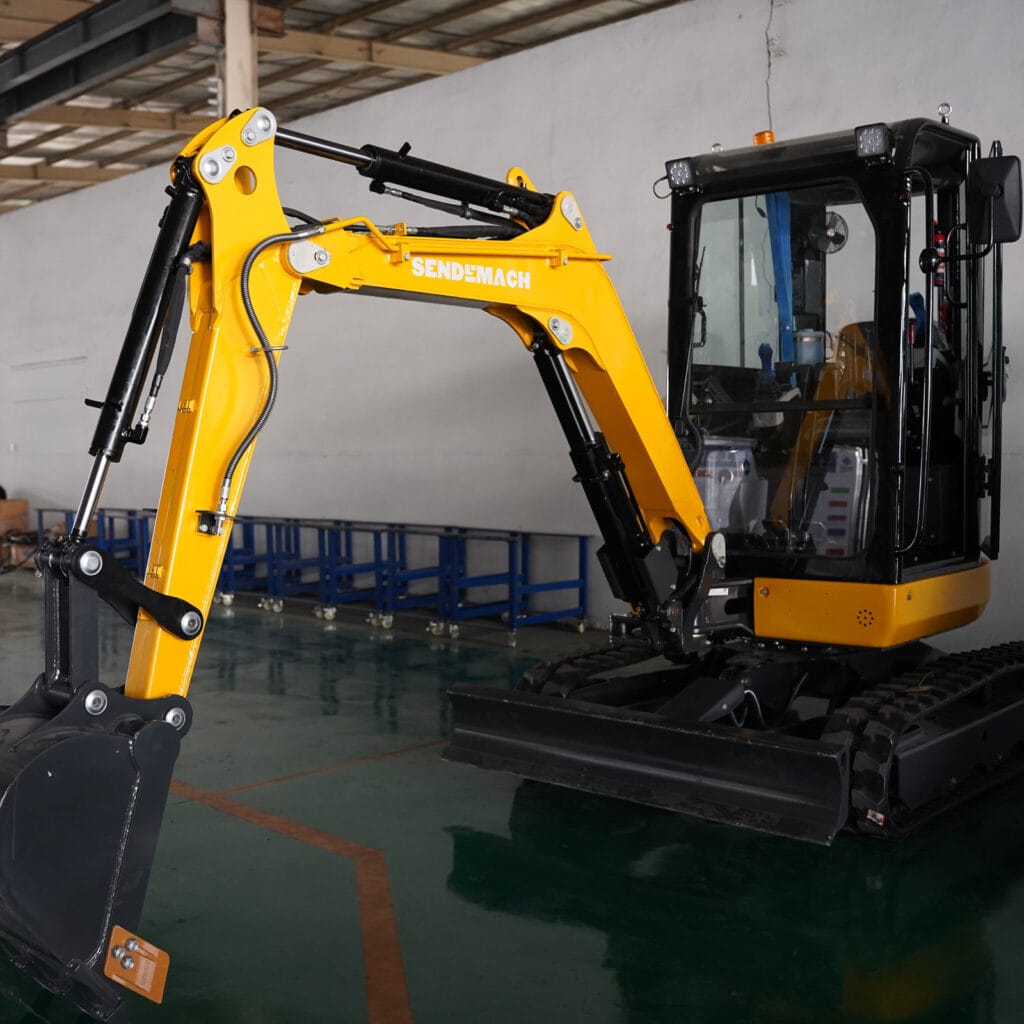

SD30 Crawler Excavator
1. SD30 is CE approved small flexible crawler excavator with high-quality and high-value. Easy to operate with enough efficiency.
2. Perfect for a small project, garden, farmland and municipal works with multifunctional attachments.
3. Competitive prices that makes you scream!
4. Engine Options -Yanmar or Kubota Euro5/EPA4 engine
5. One button to start engine
6. Boom deflection
7. Expending undercarriage
Get your hands on one
Durability you can count on
Its reduced-tail-swing design makes it perfect for work in congested or confined areas. When you choose the SD30 you get the efficiency, reliability and durability you expect from SENDEMACH.
Downloads
Specifications
Rated Power
15.2kW
Bucket Capacity
0.08M³
Net Weigjt
2780KG
Descriptions
Efficient Power
Equipped with hydraulic tracks for stable operation on rough terrain. Optional Yanmar Euro V / EPA 4 emission-compliant engine available.
Outstanding Performance
Maximum digging force of 14.2 kN to handle demanding tasks with ease.
High-precision hydraulic system powered by TAIFENG hydraulic pump and control valve.
Compact Design
With a tail swing radius of only 775 mm, it is highly maneuverable and ideal for operating in confined spaces.
Versatile Applications
Perfect for small-scale projects such as gardening, agriculture, pipeline installations, and residential landscaping.
Yanmar Engine
High-efficiency engine
Rugged Construction
Castings have been added to all moving arm joints, and the interface is stamped and bored in one piece on the lathe to improve the service life of the moving arm.
More detailed
More detailed assembly process to ensure product quality
Better Design
Better product design as well as appearance, easier to win the market
Technical Parameters
| Net weight（T） | 2.78 |
| Operating weight（T） | 2.86 |
| Bucket capacity(m³） | 0.08 |
| Engine model | YANMAR 3TNV80F |
| Rated power (kw/r/min) | 15.2/2500 |
| Authentication | Euro V |
| Hydraulic pump model | TAIFENG |
| Max.flow (L/min) | 72 |
| Working pressure (Mpa) | 22 |
| Control valve model | TAIFENG |
| Swing motor model | LKC/EDDIE |
| Travel motor model | LKC/EDDIE |
| Fuel tank capacity (L) | 35 |
| Hydraulic oil tank capacity (L) | 28 |
| Travel speed (km/h) | 2.0/3.2 |
| Swing speed (r/min) | 11.5 |
| Max. climbing degree (%) | 58 |
| Arm digging force(KN) | 14.2 |
| Bucket digging force (KN) | 20 |
| Average grounding pressure (Kpa) | 30.5 |
| Largest traction(KN) | 28 |
| A-Overall length (mm) | 4159 |
| B-Overall width (mm) | 1550 |
| C-Overall height (to top of boom)(mm) | 1636 |
| D-Overall height (to top of cab)(mm) | 2560 |
| E-Counterweight ground clearance(mm) | 535 |
| F-Min. ground clearance (mm) | 320 |
| G-Tail swing radius (mm) | 775 |
| H-Track ground length(mm) | 1600 |
| J-Track length (mm) | 2040 |
| K-Track gauge (mm) | 1250 |
| L-Track width (mm) | 1550 |
| M-Track shoe width (mm) | 250 |
| N-Turntable width (mm) | 1375 |
| O-Max. digging height (mm) | 4132 |
| P-Max. dumping height (mm) | 2742 |
| Q-Max. digging depth (mm) | 2485 |
| R-Max. vertical wall digging depth (mm) | 2240 |
| T-Max. digging reach (mm) | 4610 |
| U-Max. digging reach at ground level (mm) | 4494 |
| V-Min. swing radius (mm) | 2096 |
| X-Distance between center of rotation and tail length (mm) | 775 |
| Y-Track shoe thickness (mm) | 5.5 |
| Z-Height of counterweight (mm) | 300 |
| A1-Ground length (in transportion)(mm) | 2908 |
| Arm length (mm) | 1150 |
| Boom length (mm) | 2015 |
| Deflection angle left°/right° | 47°/73° |
| Maximum dozing height/depth (mm) | 362/383 |
Funtions of Machine
Bucket
Breaker
Earth Tamping Machine
Grass Rake
Hydraulic Thumb Clamp
Lawn Mower
Mechanical Log Grab
Mud Bucket
Narrow Bucket
Scarifier
Screen Bucket
Rotary Drilling
General FAQs
A: We offer a variety of sizes of excavators to fit a variety of projects.
(1) 1-5 tons: Great for small and home projects such as landscaping or trenching.
(2) 6-15 tons: Suitable for medium sized construction and agricultural work.
(3) 16-50 tons: Built for heavy duty industrial and mining work.
A: Our excavators are equipped with high-performance Yanmar diesel engines (for smaller models) and powerful, fuel-efficient engines for larger machines, ensuring reliable operation for all sizes.
A: Yes, we offer a wide range of attachments compatible with all excavator sizes, such as:
(1) Buckets (various capacities);
(2) Hydraulic breakers;
(3) Augers;
(4) Grapples and clamps;
(5) Rippers.
A: Absolutely! We can customize excavators for specific applications, including:
(1) Custom bucket sizes;
(2) Optional boom lengths;
(3) Special configurations for mining or agricultural use.
A: We recommend:
1-5 tons: Home landscaping, light digging, and small-scale projects.
6-15 tons: Medium construction, utility installation, and farm work.
16-50 tons: Large-scale industrial and infrastructure tasks.
Contact our team for expert advice tailored to your needs.
A: Not at all. Our compact excavators are designed for easy maintenance, with:
(1) Accessible engine compartments for quick servicing;
(2) Durable components to minimize wear and tear;
(3) Clear maintenance instructions provided in the user manual.
All our excavators are equipped with fuel-efficient engines to reduce operational costs. Smaller models consume less fuel, while larger models use advanced technologies to optimize fuel usage even in demanding environments.
A: Yes, we offer:
(1) Comprehensive warranties for all models;
(2) Full after-sales support, including technical assistance and spare parts;
(3) Global service through our overseas warehouses.
Delivery times depend on the quantity and location, but with our global distribution network, we ensure timely and reliable shipping.
Yes, we offer preferential prices for bulk orders, making it an excellent option for dealers and distributors.
Contact us through our website and send Inquiry. Our team will assist you in choosing the right excavator for your needs and provide a detailed quote.
